24-bit / 48 kHz Digital Audio – Preserves every nuance of your guitar tone with >120 dB dynamic range and 2.9 ms latency.
100 UHF Channels & True Diversity – 640–664 MHz bandwidth, automatic scan, IR sync, and rock‑solid reception even in crowded RF environments.
Complete Guitar‑Ready Kit – Includes mini 4‑pin to 6.35mm (1/4″) guitar cable – plug directly into electric/acoustic guitar or bass.
AES‑256 Encryption – Government‑grade security protects your signal from interference and eavesdropping.
Ultra‑Long Range & Durability – Up to 300m (1000ft) open field range; all‑metal bodypack with 9‑10h battery life.

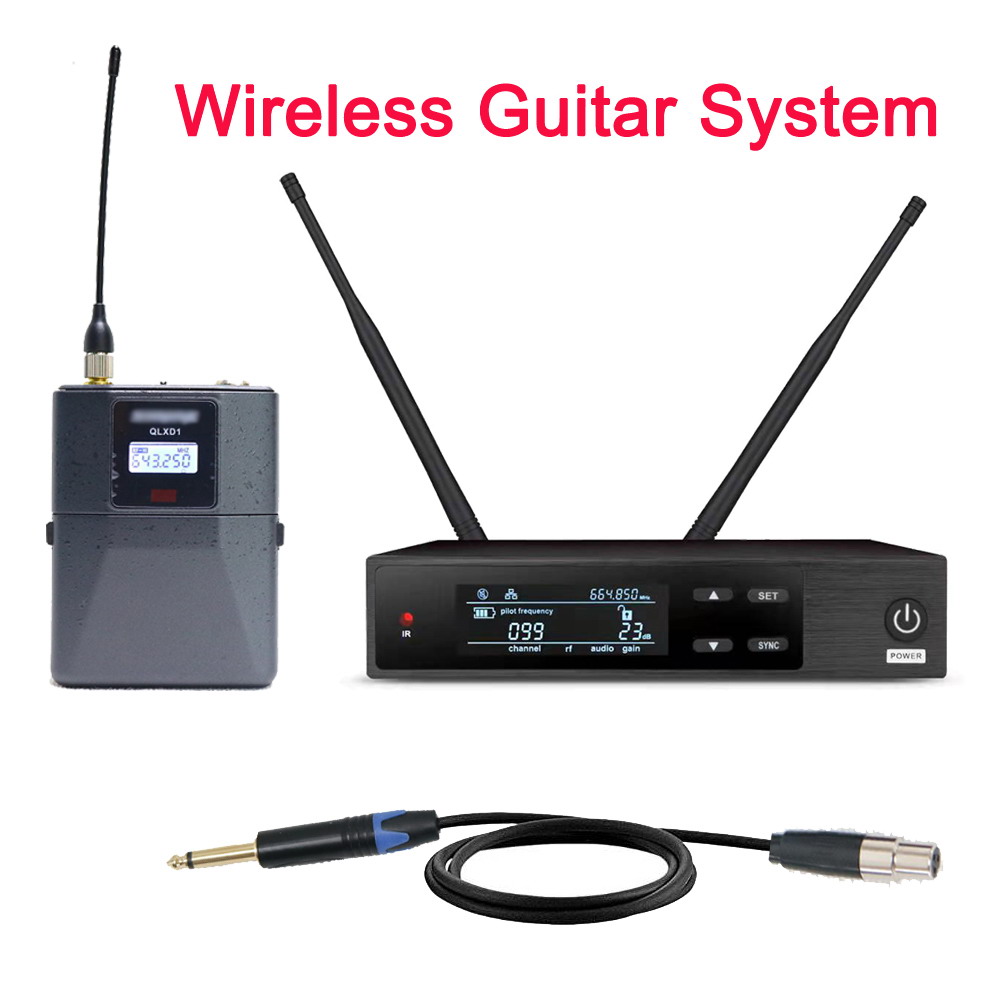

QLXD4 Receiver + QLXD1 Bodypack + Mini 4pin ➔ 6.35mm Guitar Cable | Ultimate Wireless Freedom for Guitarists
QLXD4 | QLXD1 | Mini 4pin-to-6.35mm Guitar Cable — Designed specifically for guitarists, bassists, and stage performers. The QLXD4 half-rack receiver delivers rock-solid predictive switching True Diversity reception, while the rugged QLXD1 bodypack clips to your strap or belt. The included mini 4-pin to 6.35mm guitar cable connects effortlessly to any electric/acoustic guitar or bass, giving you total wireless freedom without tone loss. Experience 24‑bit digital audio, 100 selectable UHF channels, and AES‑256 encryption — ideal for live concerts, worship stages, and studio recording.
Half-rack, metal chassis with blue LED display. Digital predictive True Diversity, Ethernet for multi-receiver control (Wireless Workbench), automatic channel scan, and IR sync. Balanced XLR + 1/4" outputs.
Rugged metal housing, TA4M input connector, 10mW/1mW selectable RF, backlit LCD, 9-10h battery life, AES-256 encryption, 120 dB dynamic range — perfect for guitar/beltpack use.
High-quality shielded cable connects your guitar’s 1/4" output to the QLXD1 bodypack. No modifications required — preserves your guitar’s natural impedance and tone. Length optimized for stage movement.
Government-grade encryption secures your signal, preventing unwanted interception. Operating range up to 300 meters (line-of-sight) — move across the largest stages without dropouts.
| Parameter | Detailed Specs |
|---|---|
| System Combo | QLXD4 Receiver + QLXD1 Bodypack + Mini 4pin ➔ 6.35mm Guitar Cable |
| Audio Quality | 24‑bit / 48 kHz digital, DQPSK modulation |
| Dynamic Range | >120 dB (A-weighted) |
| Frequency Response (Guitar path) | 20 Hz – 20 kHz ±1 dB, preserves full instrument spectrum |
| UHF Frequency Band | 640–664 MHz (50 MHz bandwidth, 100 selectable channels) |
| Working Range | Up to 300m (1000ft) open field / typical stage 100m (330ft) |
| System Latency | 2.9 ms |
| Encryption | AES‑256 compliant |
| Diversity Type | True Digital Predictive Diversity |
| Battery Life (QLXD1) | Up to 9h (AA alkaline) / 10h (Shure SB900 Li‑ion) |
| RF Output Power | 1 mW / 10 mW switchable |
| Receiver Outputs | XLR balanced (max +10 dBV) & 1/4" TS unbalanced |
| Guitar Cable | Mini 4-pin (TA4F) to 1/4" TS, 1.5m shielded, low capacitance |
| Receiver Dimensions | 1.63"×7.75"×5.94" (41×197×151 mm), 1/2U rack |
| Bodypack Dimensions | 3.39"×2.56"×0.91" (86×65×23 mm), 0.30 lbs |
⭐ No more cable tangles or limited mobility — the QLXD1 bodypack with dedicated guitar cable gives you 100% freedom to jump, move, and engage the crowd while maintaining pure, uncompressed wireless tone. The 24-bit digital audio ensures your guitar’s dynamics, harmonics, and sustain remain intact.
✔ True Wireless Freedom – Break free from guitar cables, no impedance loss, no tone suck.
✔ Plug-and-Play Simplicity – The included mini 4-pin to 6.35mm cable connects instantly to any standard guitar output.
✔ Bulletproof RF Performance – 100 UHF channels, automatic frequency scan, and True Diversity eliminate dropouts.
✔ Secure & Interference-Free – AES-256 encryption ideal for broadcast, high-profile shows, and sensitive environments.
✔ Rugged Reliability – All-metal bodypack, road-ready receiver, and long battery life for entire gigs and rehearsals.
✔ Expandable Ecosystem – Add more receivers or bodypacks to build a multi-instrument wireless rig.
Looking for different cable lengths, multi-packs, or a tailored frequency band? Our team is ready to assist you.
✉️ shop@micwlaudio.com📞 Custom solutions for touring guitarists, venues, and integrators — contact us for personalized quotes.
