Complete 3-Piece Wireless Combo with Extra Bodypack – Includes QLXD4 digital receiver, QLXD2 Beta58 handheld transmitter, plus one additional QLXD1 beltpack transmitter as backup. Provides ultimate flexibility for vocalists and presenters who need both handheld and bodypack options in a single system.
24-Bit / 48 kHz Studio-Grade Digital Audio – Transparent 24-bit digital audio processing delivers over 120 dB dynamic range with ultra-low 2.9 ms latency, eliminating the need for transmitter gain adjustments and ensuring faithful, distortion-free sound reproduction at every performance.
True Diversity Reception & 100-Channel UHF Agility – Digital predictive switching diversity with four-antenna signal reinforcement ensures rock-solid RF stability. 100 selectable channels across 50 MHz bandwidth (640–690 MHz) with automatic channel scan and one-touch IR sync for fast, interference-free setup.
Professional Beta58 Supercardioid Capsule – The QLXD2 handheld features a high-output Beta58A dynamic microphone cartridge with supercardioid polar pattern, tailored to emphasize vocal clarity, suppress off-axis noise, and deliver legendary Shure sound for lead vocalists and public speakers.
Rugged All-Metal Construction & Extended Battery Life – Machined aluminum handheld and bodypack with rugged steel receiver chassis. Up to 10 hours continuous use with optional lithium-ion rechargeable batteries, backlit LCD displays with battery runtime monitoring, and AES-256 encryption for secure wireless transmission.
24-Bit Digital Audio | 100-Channel UHF | True Diversity | Beta58 + （Extra QLXD1 Bodypack）

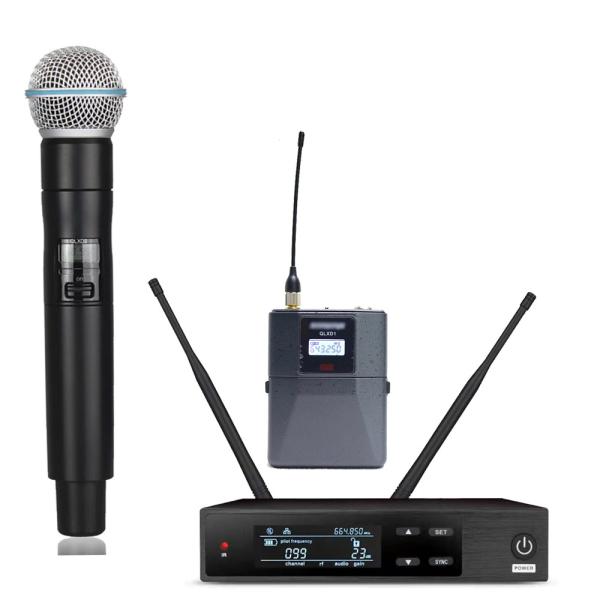

The QLXD4 Beta58 Wireless Microphone System （with Extra Bodypack） is a professional-grade digital wireless combo designed for live performances, presentations, houses of worship, and music venues. This package includes the QLXD4 digital single-channel receiver, QLXD2 handheld transmitter with Beta58A supercardioid capsule, and an additional QLXD1 beltpack bodypack transmitter as a backup or alternative configuration. Featuring transparent 24-bit/48 kHz digital audio with over 120 dB dynamic range, digital predictive True Diversity reception, 100 selectable UHF channels, and AES-256 encryption, this system delivers uncompromising wireless performance in even the most challenging RF environments.

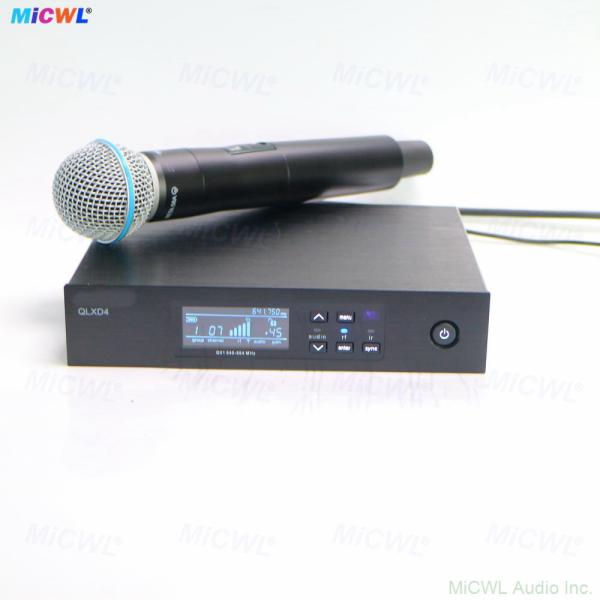

The half-rack QLXD4 receiver features digital predictive switching True Diversity with four-antenna signal reinforcement, multi-level high-frequency filtering, and short circuit protection. With 100 selectable channels across 50 MHz bandwidth (640–690 MHz), automatic channel scan, and one-touch infrared sync, finding and assigning clear frequencies is effortless. Ethernet networking enables streamlined multi-receiver setup, network channel scanning, and remote control via Shure Wireless Workbench software or the ShurePlus Channels iOS app — plus integration with AMX and Crestron third-party control systems.[reference:0]
The QLXD2 handheld transmitter is equipped with the renowned Beta58A supercardioid dynamic capsule, purpose-built for lead vocalists. Its supercardioid polar pattern tightly focuses on the performer's voice while suppressing off-axis noise and feedback. The interchangeable capsule design offers compatibility with the full range of Shure microphone cartridges. Anti-switch impact protection safeguards downstream equipment, while the backlit LCD displays battery status, group/channel, and frequency at a glance.[reference:1][reference:2]

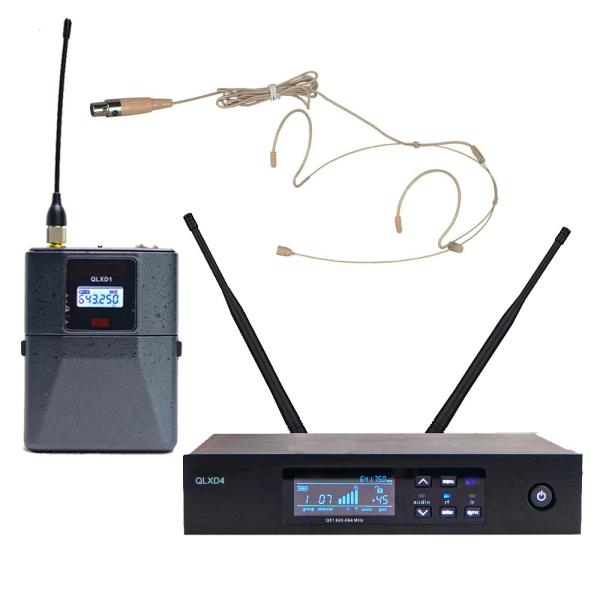

This combo includes an additional QLXD1 beltpack bodypack transmitter at no extra charge — perfect as a backup unit or for presenters who prefer a lavalier or headset configuration. Compatible with a wide selection of Shure lavalier, headset, and instrument microphones via its 4-pin TA4M mini connector. The rugged all-metal bodypack features the same 24-bit digital audio quality, 120 dB dynamic range, AES-256 encryption, and IR sync functionality as the handheld, ensuring seamless integration into your existing QLX-D workflow.[reference:3]
QLX-D delivers transparent 24-bit digital audio with an ultra-wide dynamic range exceeding 120 dB — eliminating the need for transmitter gain adjustments entirely. The extended, flat frequency response of 20 Hz – 20 kHz (microphone dependent) captures every sonic detail, while ultra-low 2.9 ms latency ensures perfect synchronization for live performances. Proprietary gain ranging automatically optimizes the system's dynamic range for any input source.[reference:4]
All components feature rugged all-metal construction — machined aluminum handheld and bodypack, steel receiver chassis — built to withstand demanding touring and installation environments. Transmitters deliver up to 9 hours with AA alkaline batteries or up to 10 hours with optional Shure SB900 lithium-ion rechargeable batteries, with accurate remaining runtime displayed in hours and minutes. AES-256 encryption ensures secure, interference-free wireless transmission for sensitive applications. Selectable RF output power (1 mW or 10 mW) allows optimization between range and battery life.[reference:5][reference:6]
| Parameter | Specification |
|---|---|
| System Configuration | QLXD4 Receiver + QLXD2/Beta58A Handheld + QLXD1 Bodypack (Extra) |
| Audio Quality | 24-bit / 48 kHz digital, DQPSK modulation |
| Dynamic Range | > 120 dB |
| System Latency | 2.9 ms |
| Frequency Response | 20 Hz – 20 kHz (mic dependent), Beta58A: 50 Hz – 16 kHz |
| UHF Frequency Band | 640 – 690 MHz |
| Channels / Bandwidth | 100 channels / 50 MHz bandwidth |
| Diversity Type | True Diversity (digital predictive switching) |
| Beta58A Polar Pattern | Supercardioid |
| Max. Input Level (Handheld) | 145 dB SPL (1 kHz at 1% THD) |
| Operating Range | 100 m (330 ft) typical; up to 200 m open area |
| Battery Life (Transmitters) | Up to 9 hrs (AA alkaline) / Up to 10 hrs (SB900 Li-Ion) |
| RF Output Power | Selectable: 1 mW or 10 mW |
| Encryption | AES-256 |
| Receiver S/N Ratio | > 70 dB(A) |
| Receiver Distortion | < 1% |
| Receiver Audio Outputs | XLR balanced (+10 dB) + 1/4" instrument output |
| Receiver Power Supply | DC 12–17 V, 1A |
| Receiver Dimensions | 1.63" × 7.75" × 5.94" (41 × 197 × 151 mm), 1/2U rack-mountable |
| Handheld Dimensions | 10.1" × 2.0" (256 × 51 mm), 12.2 oz (347 g) |
| Bodypack Dimensions | 3.39" × 2.56" × 0.91" (86 × 65 × 23 mm), 0.30 lbs |
| Warranty | 1 Year (Manufacturer: MiCWL Audio Inc.) |
If you have any questions about this QLXD4 Beta58 wireless combo with extra bodypack, need a different transmitter configuration, or would like to inquire about custom / bulk orders — our team is ready to assist you.
