- Scalable to 300 Microphone Units: Expand from 1 to 300 gooseneck microphones as needed, making it perfect for small board meetings to large enterprise conferences with hundreds of attendees.
- Stable Digital Wireless Transmission: Advanced UHF digital technology ensures interference-free, crystal-clear audio pickup with no signal dropouts, even in crowded RF environments.

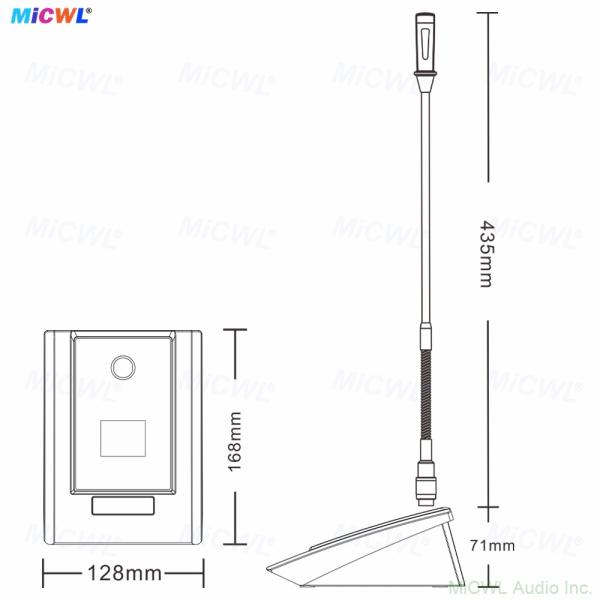

- Flexible Gooseneck Design: 40cm adjustable gooseneck allows each presenter to position the microphone at the perfect angle for optimal sound capture, reducing background noise and improving audio quality.
- Intuitive LED Display Interface: Each microphone base features an integrated LED screen showing real-time status, battery level, and channel information, along with a touch-sensitive mute button for easy operation.
- Rack-Mountable Receiver Unit: Durable 19-inch 2U rack-mount chassis with front-panel LCD display and multiple audio outputs for seamless integration with existing PA systems and recording equipment.
- Long Battery Life: Each microphone includes a rechargeable lithium-ion battery providing up to 12 hours of continuous use, perfect for all-day conferences and events.
- Wide Compatibility: Works seamlessly with enterprise conference rooms, government seminar halls, university classrooms, and commercial event venues, supporting all common audio system setups.
MiCWL Audio Inc.
A10M Series Wireless Digital Conference Discussing Host
A118 Mode Wireless Desktop Microphones Unit
Wireless Conference Meeting Room System
with 30 Destop Microphone
- Desktop LED displayer

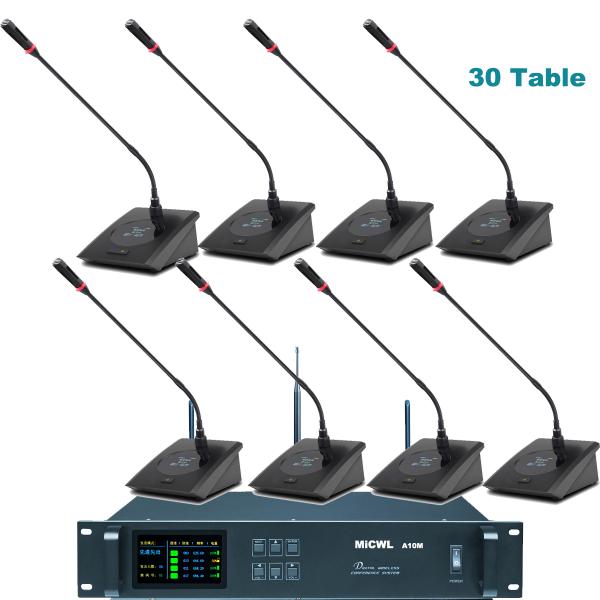

MiCWL A10M Digital Wireless Conference Microphone System
Transform your meeting experience with the advanced MiCWL A10M Digital Wireless Conference System. Designed for professional environments such as boardrooms, lecture halls, and government offices, this scalable solution offers seamless communication with ultra-stable digital wireless transmission.
🔥 Key Features

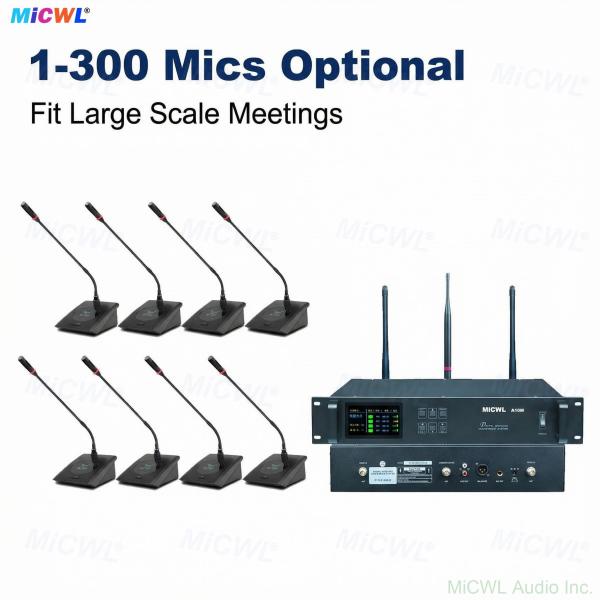

- Supports 1 to 300 Mics – Expandable system ideal for small group discussions or large international conferences.
- Digital UHF Wireless Technology – Eliminates interference, feedback, and dropouts; ensures clear, uninterrupted audio.
- Gooseneck Microphone Design – Adjustable angle for optimal voice pickup; perfect for desks, podiums, and tables.
- LED Status Display – Real-time monitoring of signal strength, battery level, and channel status on each mic base.
- Rack-Mountable Receiver – Compact 1U chassis with dual antennas for strong signal reception and easy installation.
- Multiple Output Options – Balanced XLR, Line Out, Mix Out, and Communication Port for integration with PA systems and video conferencing tools.
🎯 Perfect For:
- Corporate Board Meetings & Executive Conferences
- University Lectures & Classroom Teaching
- Government Agencies & Public Hearings
- Multi-Language Conferences & International Summits
⚙️ Technical Specifications
| Model |
A10M - A118 |
| Transmission Type |
Digital UHF Wireless |
| Max Channels |
1 Up to 300 Mics |
| Microphone Type |
Gooseneck Desk Mic |
| Display |
LED Indicator (Signal, Battery, Channel) |
| Power Supply |
DC 12V–17V |
| Output Interfaces |
XLR, RCA, Line Out, Mix Out |
| Dimensions |
483 x 380 x 85 mm (Receiver) |
| Color |
Black |
MiCWL A10M Wireless Host Unit Description:
· Products using digital radio processing audio signals and control signals, without the cumbersome wires;
· Scientific IP and ID code design, ID: 001-008, IP: 001-160;
· Unlimited number of units can be placed anywhere in the loop;
· CPU multi-stage error correction and encryption scrambling. Prevent cross-channel interference and anti-cell phone
electromagnetic interference;
· FIFO and having restrictions on speech, the President dedicated three kinds of speech patterns, while the number of speakers 1-4
persons Optional;
A host large screen (240X128) dot matrix LCD display work content. Hierarchical menu design, with volume control, speech patterns,
the number of speakers, using the channel, EQ functions, communication and IP communication ID adjustment function, real-time
display the number of speakers, the order of the channel, the channel position and power unit data;
· Chairman priority control function, limited by limiting function, can cut the representative;
Use distance: 100-120 meters, communication distance: 120-200 meters;
· 2U chassis design, can be installed in 19 inches
Power supply:DC 12V-17V
Sensitivity: -105dBm
S/N Ratio:>90dB
T.H.D:<0.05%Db
Max.deviation range:±45KHz
Working distance: about 100meter
Power:6.5W
Size:480*370*85mm
Weight:5KG
A118 Model: Wireless Chairman unit and Delegate unit Table Mic:
* Anti-electromagnetic, mobile phone interference function;
· LED Tip speech patterns, working conditions, low pressure indication and control buttons, etc. Chairman of the content
information;
· Chairman unit has the priority function, limited by limiting function, can cut the representative;
· Gooseneck microphone pole design, the microphone has a light ring indicates power-on state;
· External transmitting antenna, the signal all directions, which do not appear out of control within the effective range;
Power supply:DC4.5V (1.5V AA*3) battery
Emission power:10mW
Maximum frequency deviation:±45KHz
Pickup head:condenser,single direction
Sensitivity:-45±2dB@1KHz
Frequency response:20Hz-18KHz
Power consumption:130mA
📦 What's Included?
- 1 x A10M Receiver Unit
- 30 x Gooseneck Microphones - 1 Chairman and 29 Delegate ( or all 30pcs deletager mics) Optional
- Power Adapter
- User Manual & Installation Guide
-
- (Optional – Configurable from 1 to 300, please contact us if you need more mics.)
Elevate your audio experience with MiCWL A10M – where clarity meets scalability.
### Frequently Asked Questions
**Q: Can I add more microphones to the system later?**
A: Yes, the system is fully expandable and supports up to 300 microphone units. Simply purchase additional mic units and pair them with the receiver in minutes.
**Q: How far can the microphones be from the receiver?**
A: The system has an operating range of up to 80-200 meters in line-of-sight conditions, which is sufficient for most large conference rooms and event spaces.
**Q: Do the microphones require batteries?**
A: Each microphone unit working by AA battery that provides up to 12 hours of continuous use .
**Q: Can the system be integrated with existing audio equipment?**
A: Yes, the receiver includes multiple audio output options (balanced XLR, unbalanced 6.35mm, and 3.5mm) that allow easy integration with mixers, amplifiers, PA systems, and recording equipment.
**Q: Is the system secure against eavesdropping?**
A: Yes, the digital transmission uses advanced encryption technology to ensure your conversations remain private and secure, making it ideal for sensitive government and corporate meetings.
### Why Choose Our Conference Microphone System?
1. **Unmatched Scalability**: Our system grows with your needs, supporting from 1 to 300 microphones without expensive upgrades. No other system in this price range offers this level of flexibility.
2. **Proven Reliability: Used by hundreds of enterprises, government agencies, and educational institutions worldwide, our system delivers consistent performance even in the most demanding environments.
3. **Superior Audio Quality**: Our advanced digital technology ensures crystal-clear audio reproduction, eliminating the static, interference, and dropouts common with lower-quality analog systems.
4. **Easy Installation and Operation**: The system is designed for simple setup and intuitive operation, with automatic channel scanning and plug-and-play functionality that requires minimal technical expertise.
5. **Durable Construction**: Both the receiver and microphone units are built with high-quality materials to withstand the rigors of daily use in professional environments, ensuring years of reliable service.
6. **Comprehensive Support**: We provide full technical support, a 3-year warranty, and a complete range of accessories to ensure your system operates at peak performance at all times.
