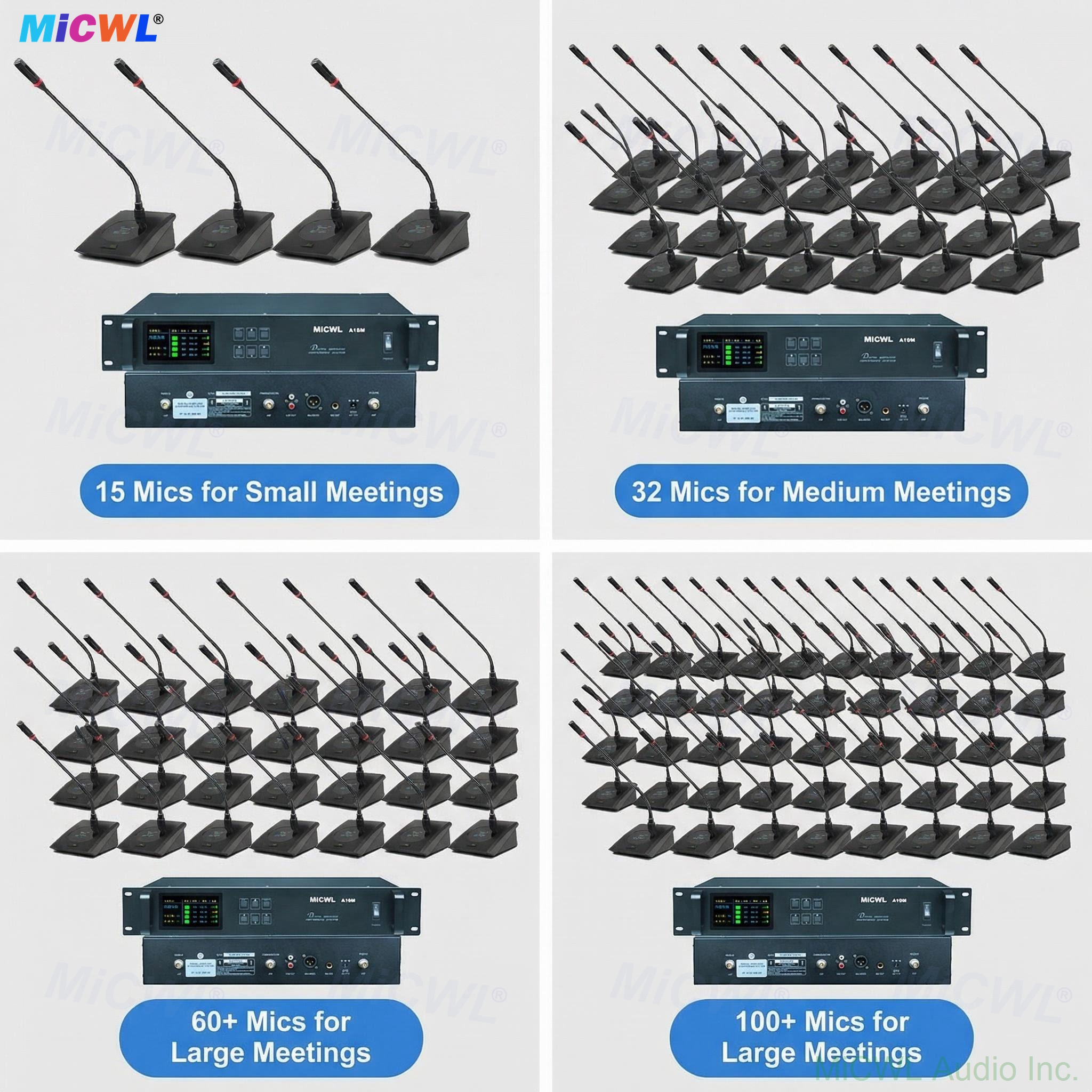

✅ Scalable Design: Supports 1 to 300 wireless microphones, perfect for small teams or large international conferences.

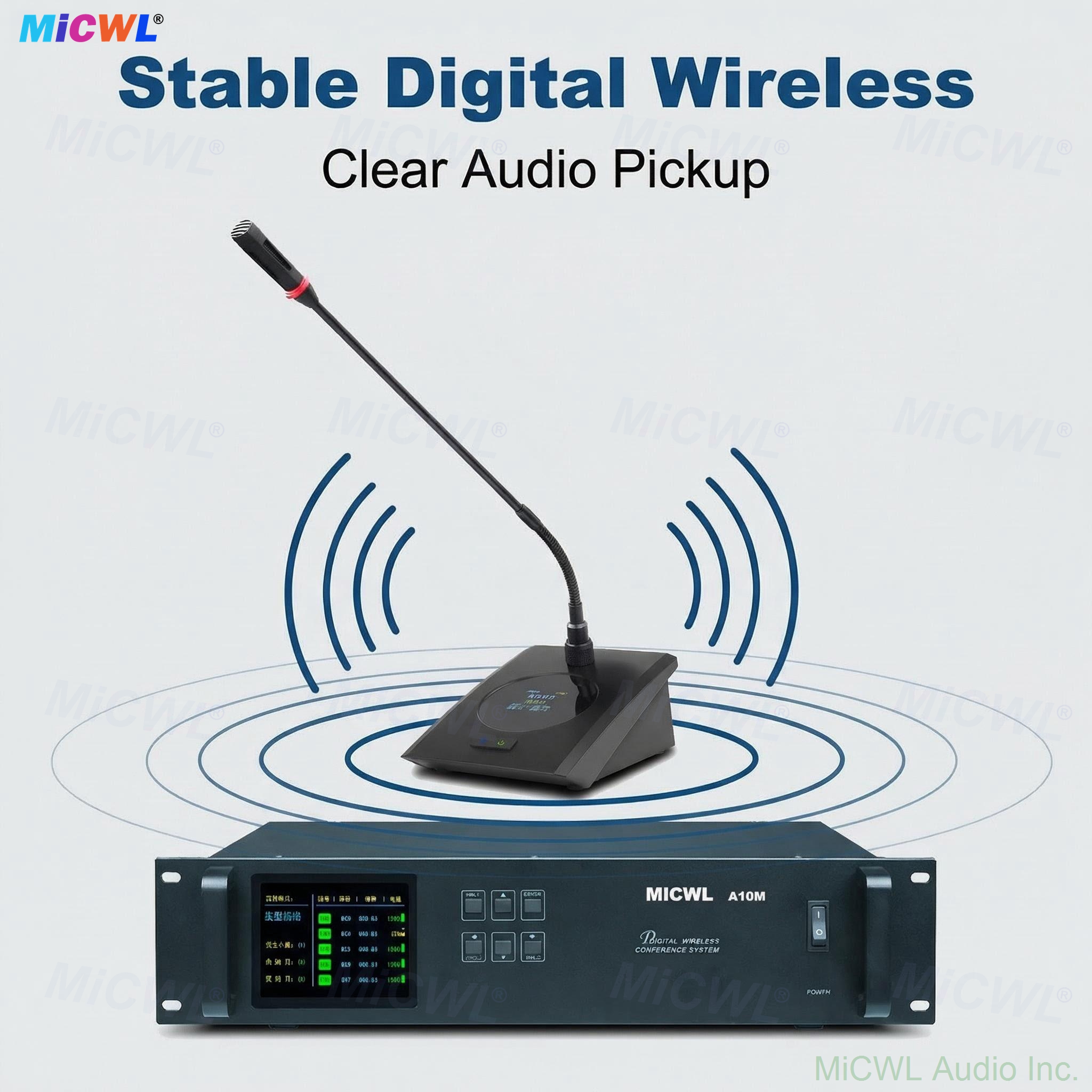

✅ Stable Digital UHF Transmission: Eliminates noise, interference, and dropouts for crystal-clear sound quality.
✅ Adjustable Gooseneck Mics: Flexible positioning allows optimal voice capture from any speaking angle.
✅ Real-Time LED Status Display: Monitor signal strength, battery life, and channel activity instantly.
✅ Professional Rack-Mount Receiver: Easy integration into AV setups with multiple audio outputs (XLR, RCA, Mix Out).
✅ Ideal for Multiple Environments: Suitable for corporate meetings, university lectures, government hearings, and multi-language events.
✅ Plug-and-Play Setup: Simple configuration with intuitive interface and built-in antenna system.
MiCWL Audio Inc.
A10M Series Wireless Digital Conference Discussing Host
A118 Mode Wireless Desktop Microphones Unit

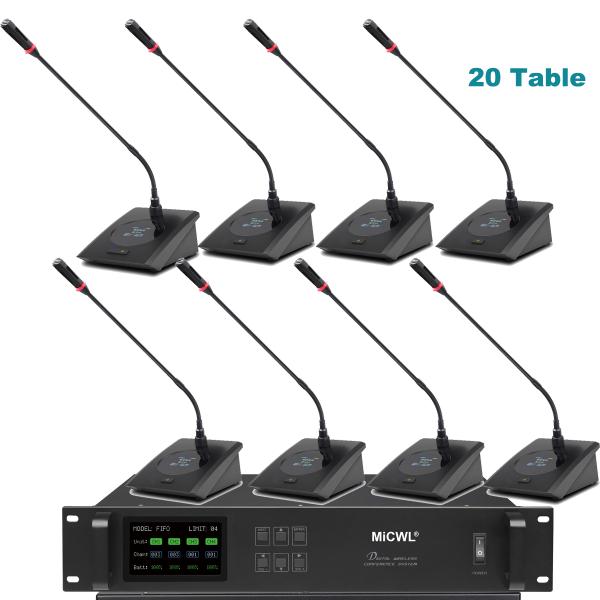

Wireless Conference Meeting Room System
with 20 Destop Microphone
- Desktop LED displayer

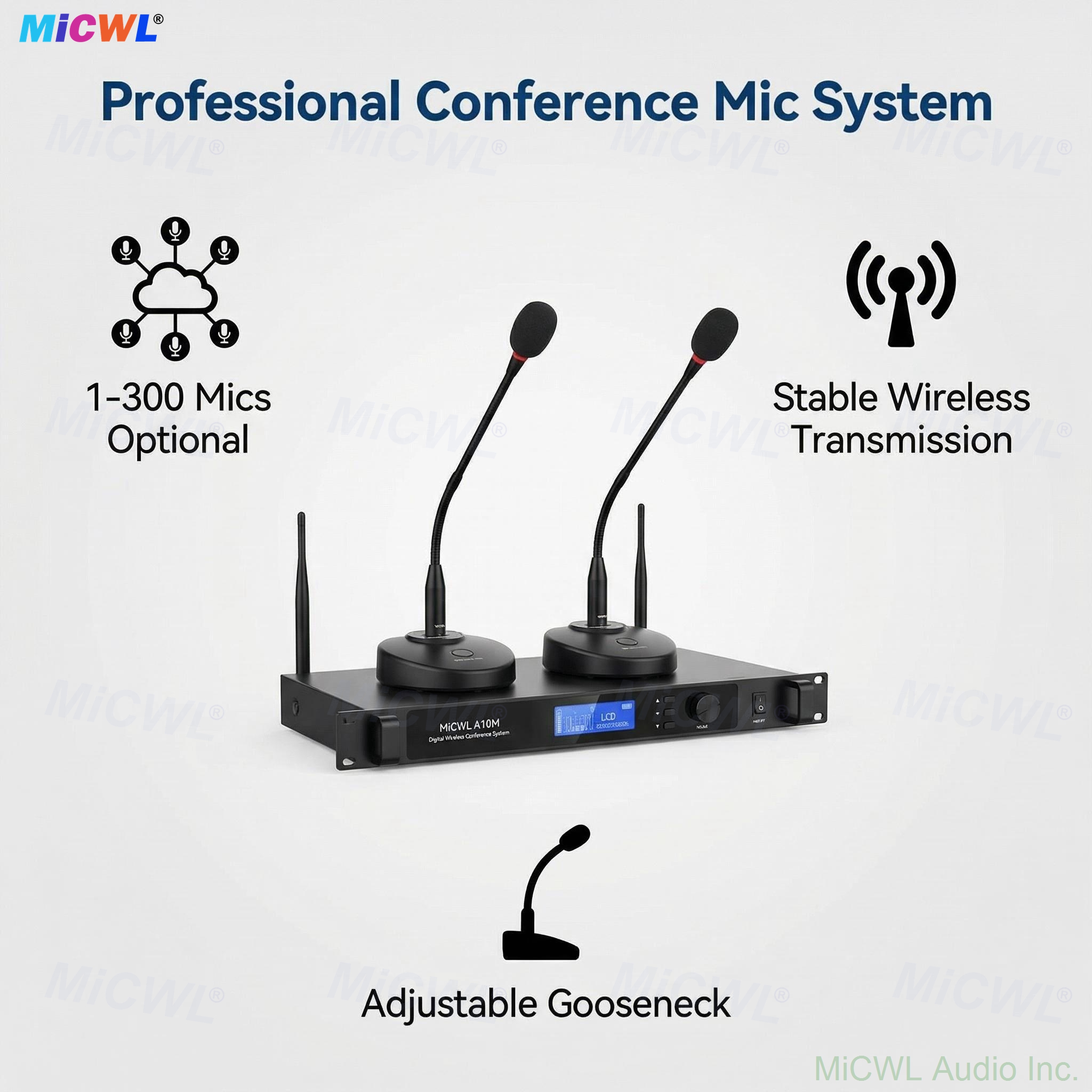

MiCWL A10M Digital Wireless Conference Microphone System
Transform your meeting experience with the advanced MiCWL A10M Digital Wireless Conference System. Designed for professional environments such as boardrooms, lecture halls, and government offices, this scalable solution offers seamless communication with ultra-stable digital wireless transmission.
🔥 Key Features

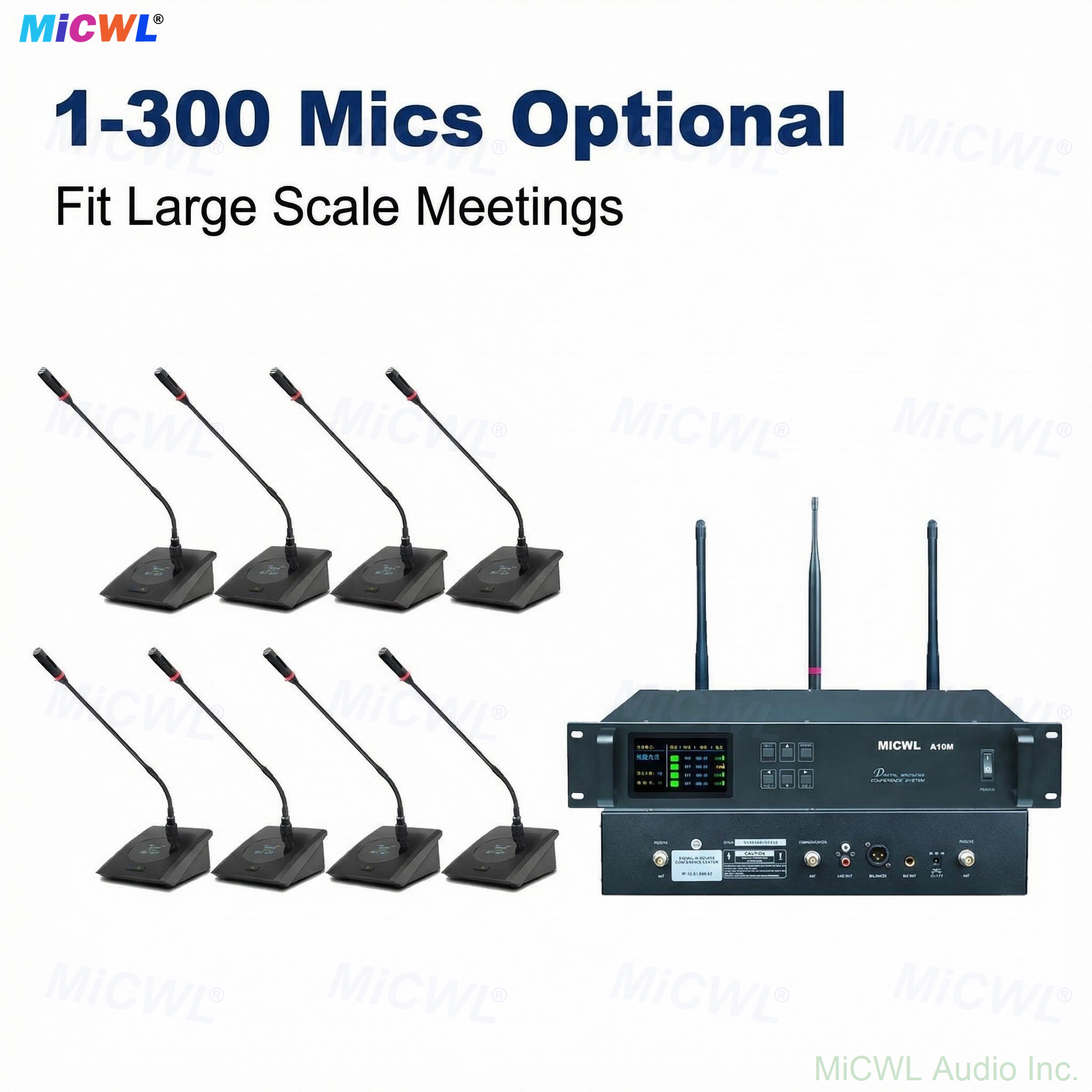

- Supports 1 to 300 Mics – Expandable system ideal for small group discussions or large international conferences.
- Digital UHF Wireless Technology – Eliminates interference, feedback, and dropouts; ensures clear, uninterrupted audio.

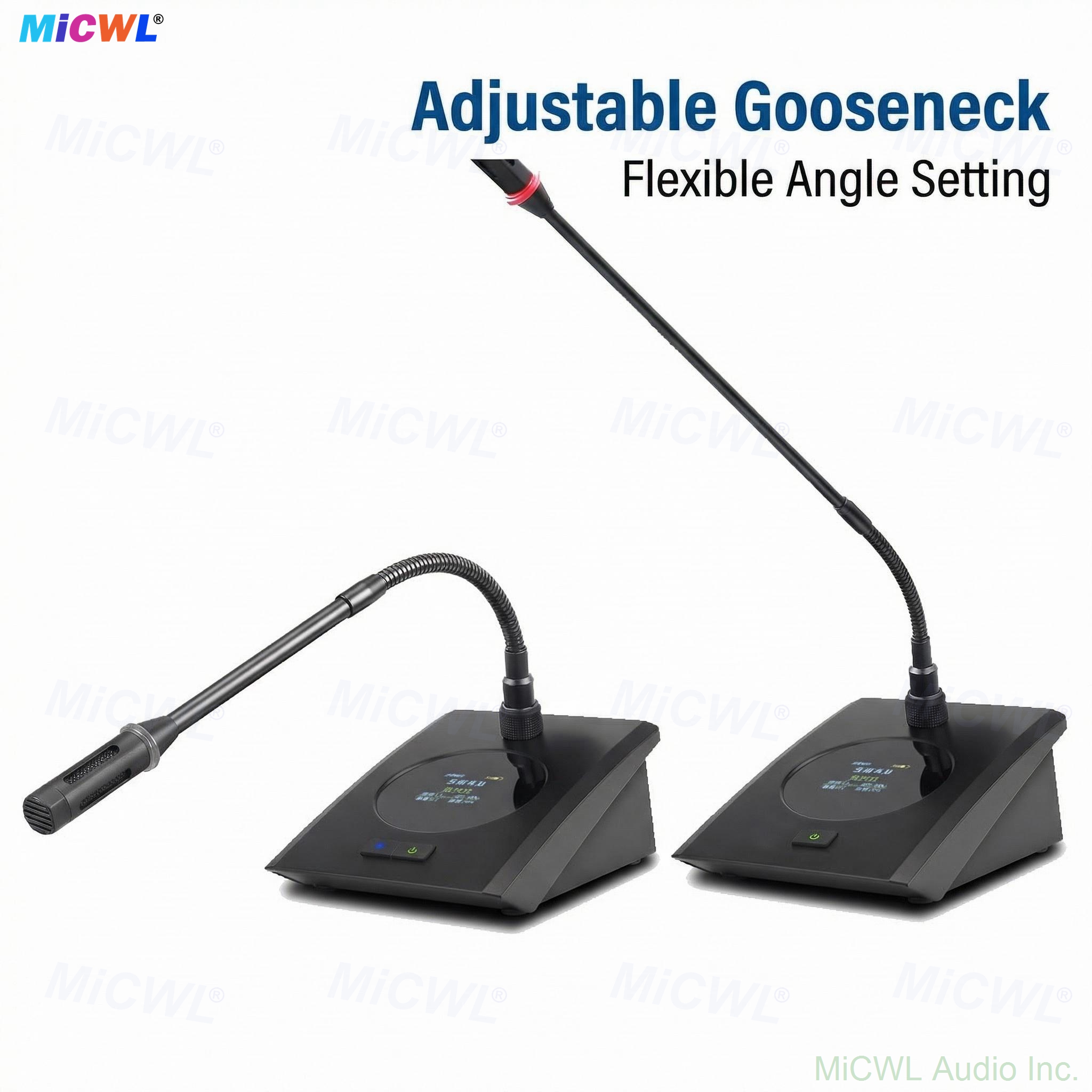

- Gooseneck Microphone Design – Adjustable angle for optimal voice pickup; perfect for desks, podiums, and tables.
- LED Status Display – Real-time monitoring of signal strength, battery level, and channel status on each mic base.
- Rack-Mountable Receiver – Compact 1U chassis with dual antennas for strong signal reception and easy installation.
- Multiple Output Options – Balanced XLR, Line Out, Mix Out, and Communication Port for integration with PA systems and video conferencing tools.
🎯 Perfect For:

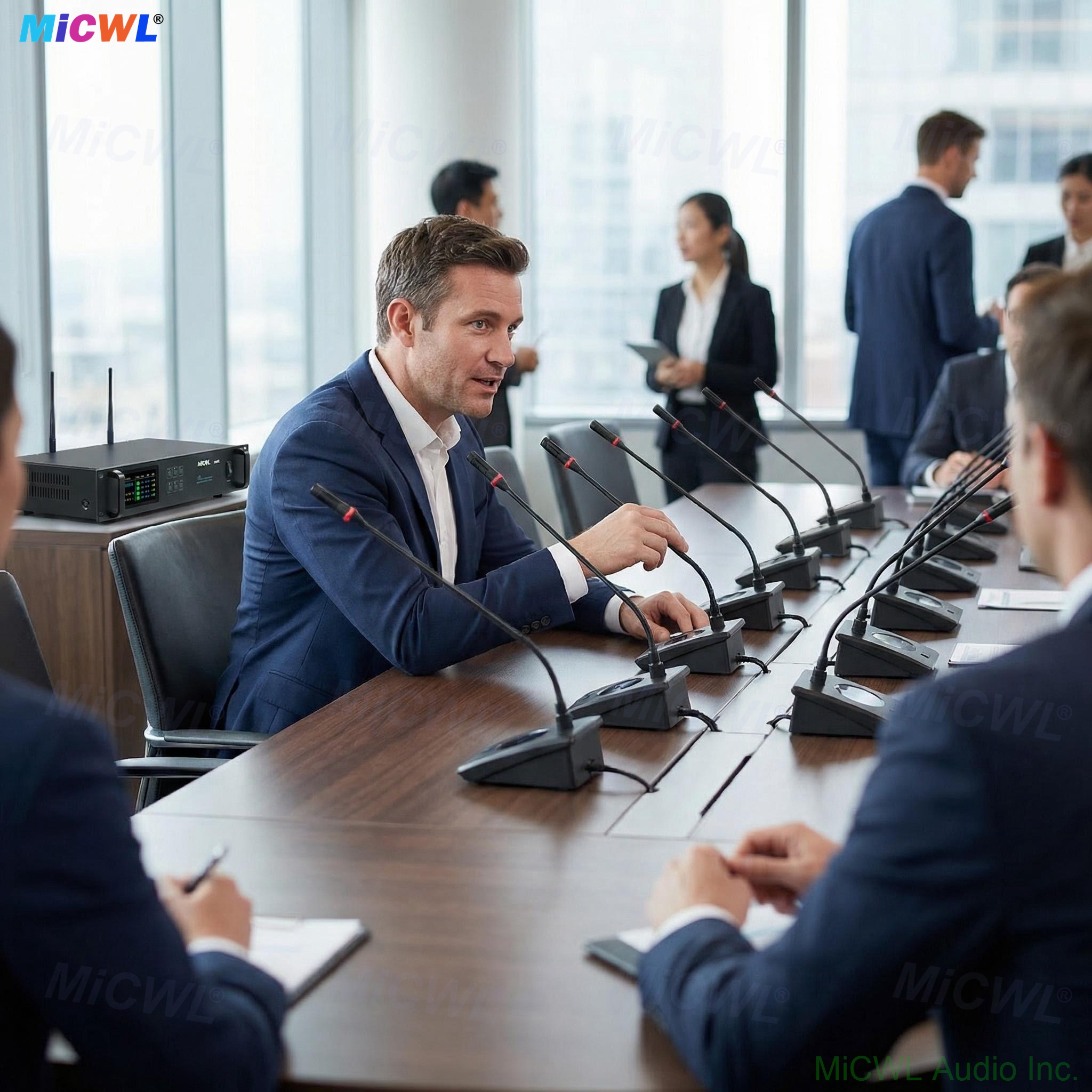

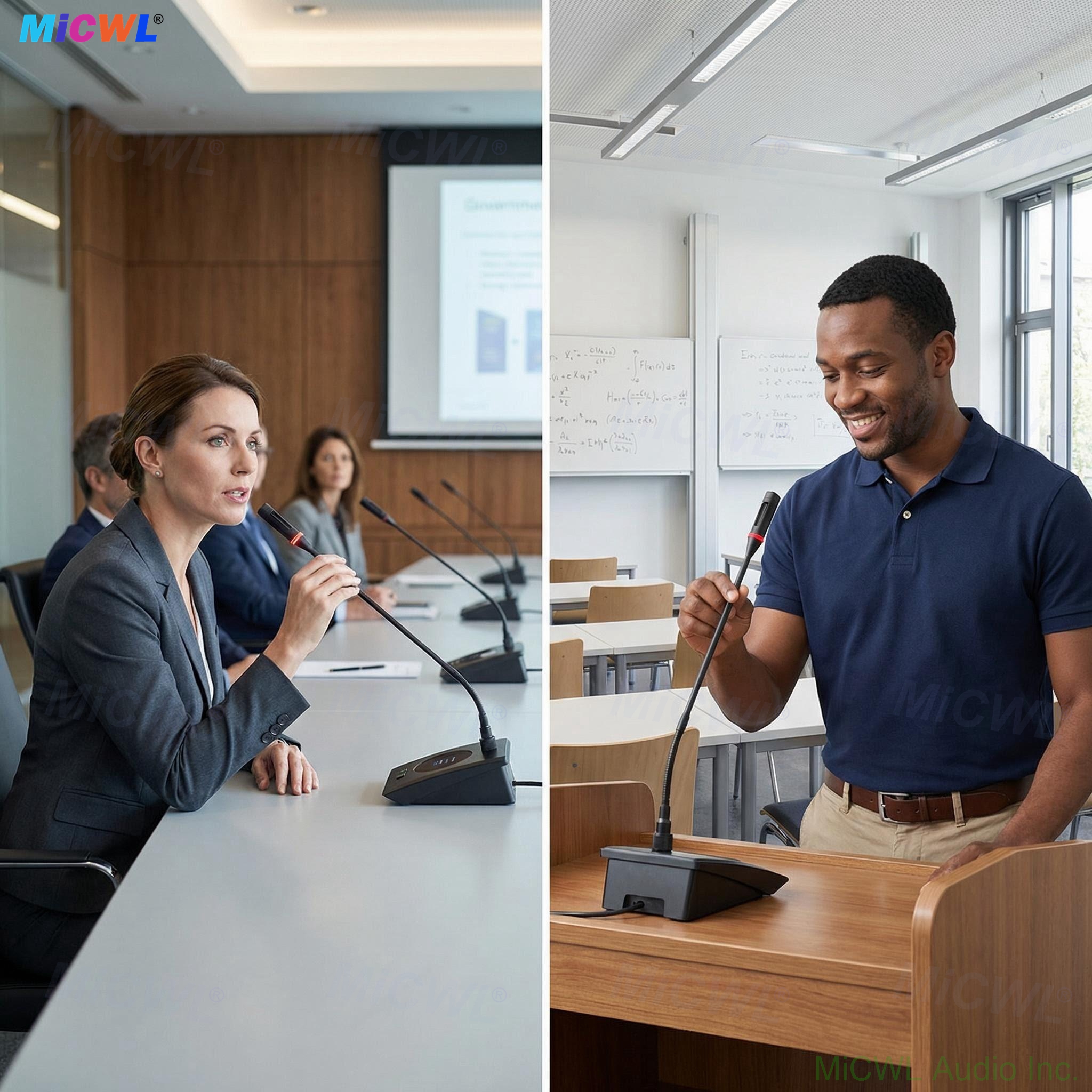

- Corporate Board Meetings & Executive Conferences
- University Lectures & Classroom Teaching
- Government Agencies & Public Hearings
- Multi-Language Conferences & International Summits

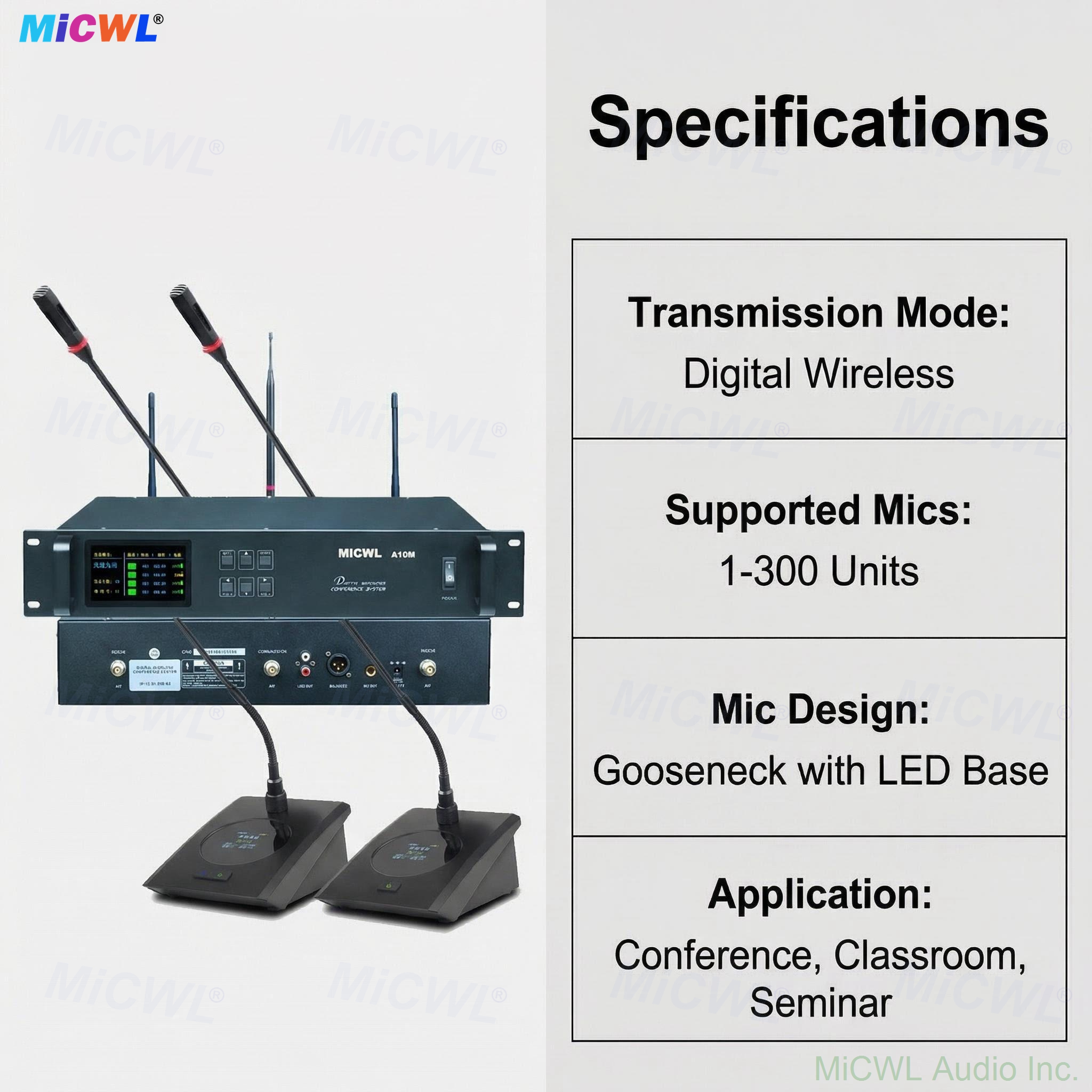

⚙️ Technical Specifications
| Model |
A10M - A118 |
| Transmission Type |
Digital UHF Wireless |
| Max Channels |
1 Up to 300 Mics |
| Microphone Type |
Gooseneck Desk Mic |
| Display |
LED Indicator (Signal, Battery, Channel) |
| Power Supply |
DC 12V–17V |
| Output Interfaces |
XLR, RCA, Line Out, Mix Out |
| Dimensions |
483 x 380 x 85 mm (Receiver) |
| Color |
Black |
MiCWL A10M Wireless Host Unit Description:
· Products using digital radio processing audio signals and control signals, without the cumbersome wires;
· Scientific IP and ID code design, ID: 001-008, IP: 001-160;
· Unlimited number of units can be placed anywhere in the loop;
· CPU multi-stage error correction and encryption scrambling. Prevent cross-channel interference and anti-cell phone
electromagnetic interference;
· FIFO and having restrictions on speech, the President dedicated three kinds of speech patterns, while the number of speakers 1-4
persons Optional;

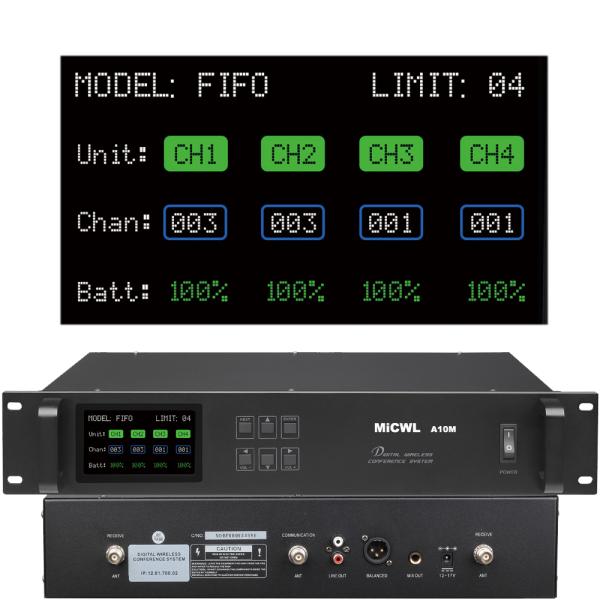

A host large screen (240X128) dot matrix LCD display work content. Hierarchical menu design, with volume control, speech patterns,
the number of speakers, using the channel, EQ functions, communication and IP communication ID adjustment function, real-time
display the number of speakers, the order of the channel, the channel position and power unit data;
· Chairman priority control function, limited by limiting function, can cut the representative;
Use distance: 100-120 meters, communication distance: 120-200 meters;
· 2U chassis design, can be installed in 19 inches
Power supply:DC 12V-17V
Sensitivity: -105dBm
S/N Ratio:>90dB
T.H.D:<0.05%Db
Max.deviation range:±45KHz
Working distance: about 100meter
Power:6.5W
Size:480*370*85mm
Weight:5KG

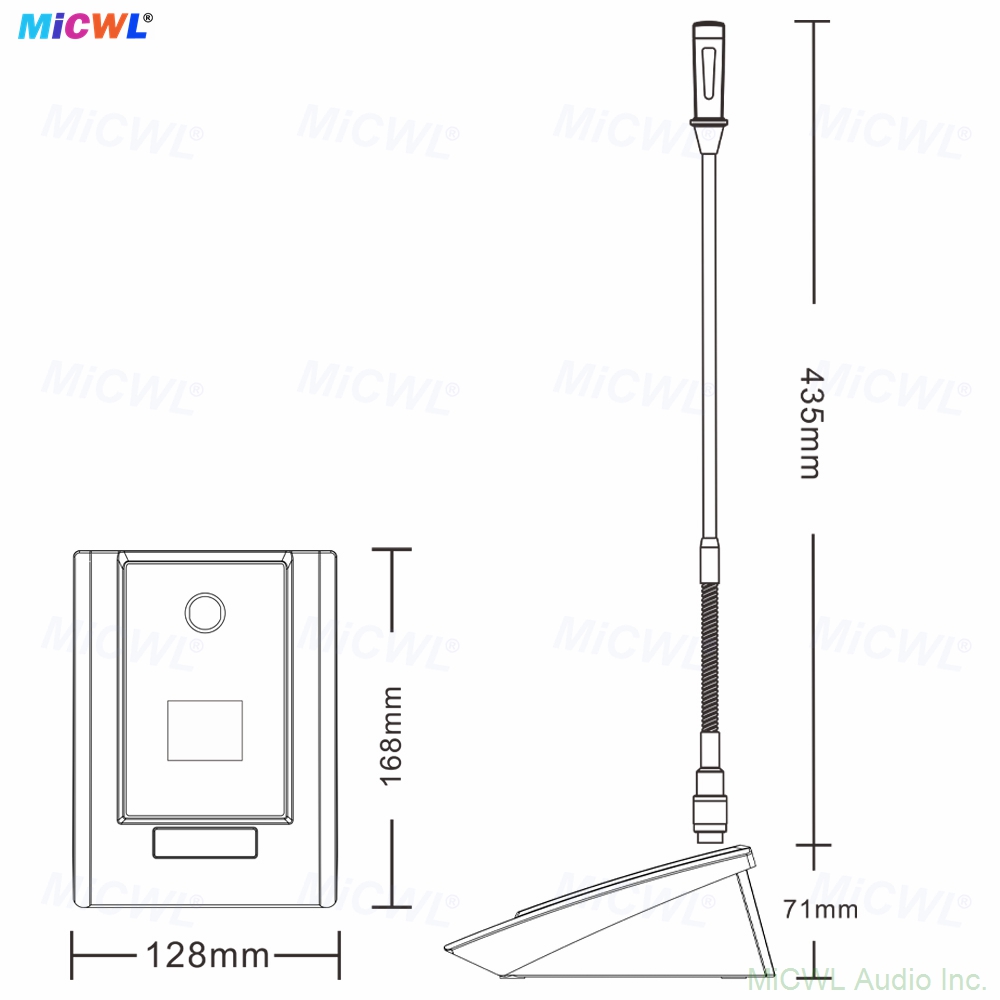

A118 Model: Wireless Chairman unit and Delegate unit Table Mic:
* Anti-electromagnetic, mobile phone interference function;
· LED Tip speech patterns, working conditions, low pressure indication and control buttons, etc. Chairman of the content
information;
· Chairman unit has the priority function, limited by limiting function, can cut the representative;
· Gooseneck microphone pole design, the microphone has a light ring indicates power-on state;
· External transmitting antenna, the signal all directions, which do not appear out of control within the effective range;
Power supply:DC4.5V (1.5V AA*3) battery
Emission power:10mW
Maximum frequency deviation:±45KHz
Pickup head:condenser,single direction
Sensitivity:-45±2dB@1KHz
Frequency response:20Hz-18KHz
Power consumption:130mA
📦 What's Included?
- 1 x A10M Receiver Unit
- 20 x Gooseneck Microphones - Chairman and Delegate Optional (Optional – Configurable from 1 to 300, please contact us if you need more mics.)
- Power Adapter
- User Manual & Installation Guide
Elevate your audio experience with MiCWL A10M – where clarity meets scalability.
