🎤 20-Mic Full Coverage：Supports up to 20 participants simultaneously—ideal for large conferences, panels, and executive boardrooms
🖥️ Smart LCD Host Control：1U rack-mount metal host with real-time channel monitoring, volume control & system status display
🔊 Built-in Speaker per Mic：Each gooseneck mic includes local speaker for clear audio feedback and reduced echo
🔌 True Plug-and-Play Wired：All cables included; no Wi-Fi/Bluetooth = zero dropouts, maximum reliability
🏢 Enterprise-Grade Durability：Black metal host + stable desktop bases; built for daily use in demanding environments

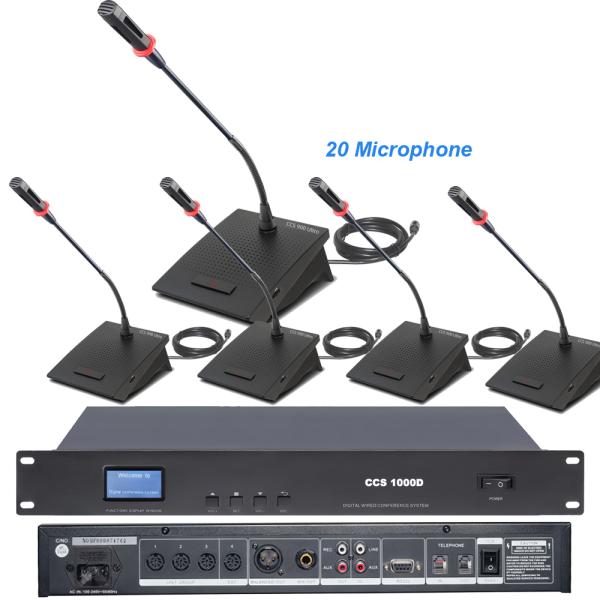

Professional CCS900 Ultro Built-in speaker Series

with Gooseneck Table Digital Meeting Room Wired Conference Microphone System

CCS 1000D LED Telephone function host

CCS900 Ultro Built-in speaker Desktop Microphones Unit

19" Rack Mountable Design Host

With Gooseneck Microphone Unit

Desktop Gooseneck Microphone Built-in speaker (Used to extend the conference sound)

Host Unit

Chairman Unit

Delegate Unit

option

(1 CCS1000 Host Support up to 60pcs table Mic, please contact us if you need more Delegate Unit Microphone. add 1 power extension host can

with 60 tabe microphone. Max. 1 host support to 250pcs table mic. )

Packing include:

(1) 1x CCS1000D Digital Conference Host

(2)  CCS900  1 Chairman 19 Delegate Desktop Microphone with 2m 8Pin cable option.  ( or 20pcs delegater microphone)

(3) 1x AC-DC adapter

(4) 1x Manual.

(5)  1x 10m 8-Pin cable.

Convenient, hand-held conference system CCS 1000D series, without a central processor. CCS 1000D host is the core of the entire system. The system can accommodate up to 60 speakers, and the external PA system can be used for voice amplification. It has microphone auto-off function (microphone open, no sound input for more than 40 seconds, auto close). there is an auxiliary audio signal output and recording output, easy to connect other devices.

System Features:

1.The panel adopts buttons to control speaking mode and the number of speakers, breaking the traditional dial control.

2.LCD screen displays working status

3.The number of speakers: 1, 2,3,4,5,6 and full opening

4. 7 meeting work modes: ①chairman mode ②first in first out mode ③last in first out mode ④LIMIT mode ⑤FREE mode ⑥responder mode ⑦Apply speaking mode

5.The host can connect 60 microphone units, it divide into 4 parallel outputs, each channel can connect 20 units. It also able to connect expansion unit number of extended machine up to 5000 units by power extended machine (under 255 units) or data extended machine (above 255 units).

6.Equipped with audio parallel output and a 6.3 jack output, conference recording outputs and background music inputs interface.

7.Built-in telephone coupler input and output ports, and can be used for remote telephone conference. According to the principle of communication, it divide two-way telephone voice signals into inputs and outputs. In order to control the intercom setting of phone call and set aside between the hall.

9.RS232 interface can be achieved using computer software to control entire conference system function.

CCS 900 Ultro (Built-in Speaker mode) Desktop Model: Chairman unit and Delegate unit Microphone

1, intelligent digital design control circuit, low power consumption.

2, high-fidelity single-directional condenser microphone core, sound reduction, high definition, low noise;

3, the chairman unit has the right to speak, may at any time to close the other attendance unit.

4, the chairman unit has approved the representative of the key to speak, like the right to show the right.

5, excellent anti-mobile phone interference.

6, unique speaker network design Built-in speaker, can be used for conference loudspeakers and play conference background music.

7, touch switch volume control design, adjustable volume size.

8, th left side of the design has 3.5 audio output, listen to other attend the meeting to speak the content.

9, the conference unit to support hot-swappable function, comes with 2.1 m 8P cable; hand-handle connection mode, easy installation, flexible operation

Type: capacitance

Polar pattern: Cardioid direction

Frequency response: 50Hz-1700Hz

Sensitivity: -45±2dB@1KHz

Input voltage: DC 9V(powered by host)

Min input impedance: 1KΩ

S /N Ratio: 68dB(A)

Output connector: 8P terminal

Input and output wire: 2.1M 8P shielded line

• ✨ All-in-One Audio Clarity
  Each of the 20 microphones features a dedicated built-in speaker for balanced sound distribution. Integrated pickup & amplification eliminates external speakers—reduce setup complexity while ensuring every voice is heard clearly across the room.
• 🛡️ Professional Metal Host Unit
  Sleek black metal casing (host) combines durability with modern aesthetics. Resists wear in high-traffic environments—ideal for boardrooms, lecture halls, and training centers seeking a premium visual impression.
• 🔌 Complete Plug-and-Play Kit
  Includes 1 host unit, 20microphones ( with 2.1m cable each), and a 10m main connection cable. Ready for immediate deployment in rooms up to 50㎡—no additional adapters or complex configuration required.
• 🎯 Optimized for Collaborative Scenarios
  Engineered for dynamic discussions: corporate strategy sessions, university seminars, instructor-led training. Noise-reduction tech minimizes background interference; speakers deliver crisp audio to all participants.
• 🌍 Trusted by Professionals Worldwide
  Designed for meeting organizers, facility managers, and educators who prioritize reliability. Streamline communication workflows and elevate participant engagement in every session.
•

| |Parameters |

| Host | 1U standard rack-mounted, black metal body, LCD function display

| Microphone | 20 wired over-ear microphones (black base + metal pole), each with built-in speaker

| Connection method | Wired connection (complete cable set including host interface)

| Application scenarios | Corporate boardrooms, government meeting rooms, university lecture halls, large training centers, international seminars

| Installation method | Standard 19-inch cabinet installation / Desktop placement (host)

| Certification | CE, FCC, RoHS

| Warranty | Global warranty for 3 years + professional technical support

Why CCS 900 Ultra?

“As a facility manager, I needed a system that’s both professional and effortless to deploy. The CCS 900 Ultra’s integrated design cut our setup time by 70%—and the clarity during hybrid meetings impressed every department.”
— Verified Buyer, Corporate Procurement Team

CE/FCC certified | 3-Year Manufacturer Warranty | Dedicated Multilingual Support Team | Bulk Order Discounts Available for Institutions
