Hyper‑Cardioid Pickup – Focused, directional sound capture reduces background noise and feedback.
Push‑to‑Mute with LED – Silent operation with a clear visual mute indicator for meetings.
Switchable Bass Filter (80Hz) – Eliminates low‑frequency rumble, HVAC, and handling noise.
Shock‑Absorbing Rubber Base – Isolates table vibrations for clean, professional audio.
6m XLR Cable & Phantom Power – Long cable for flexible placement; 9‑52V DC phantom power operation.
XLR Phantom Power | Push‑to‑Mute | Bass Filter | 6m Cable | Hyper‑Cardioid

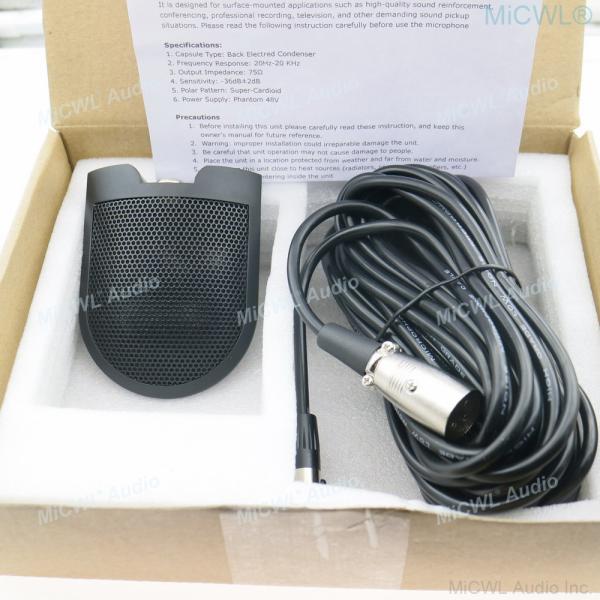

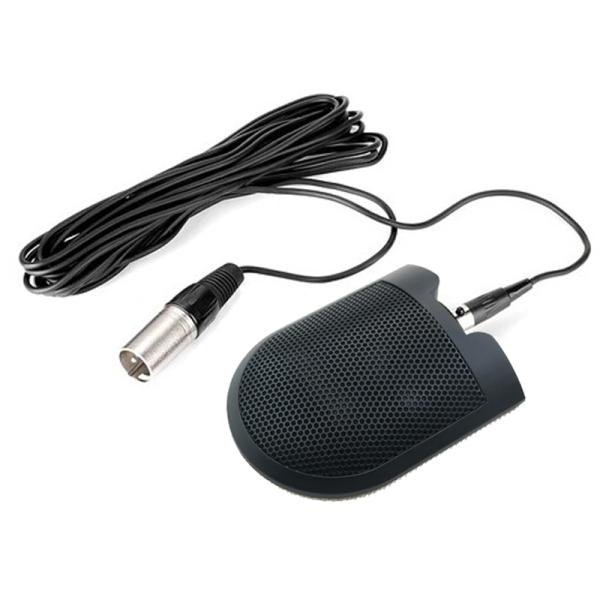

Product includes BM-630 boundary microphone and 6m XLR cable. Requires 9‑52V DC phantom power.

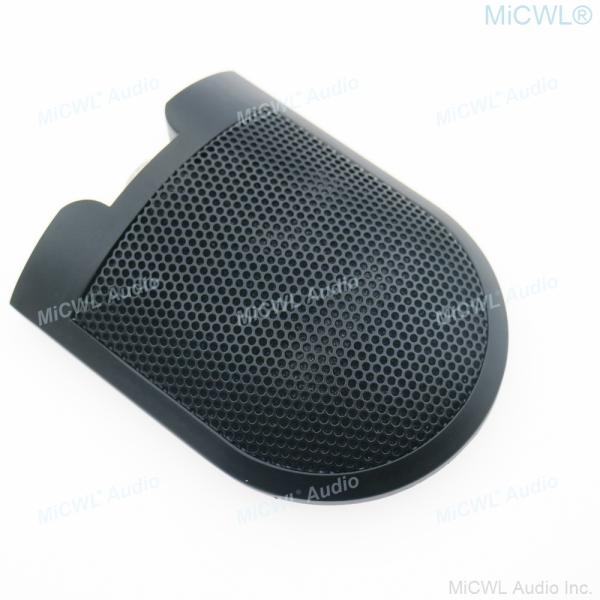

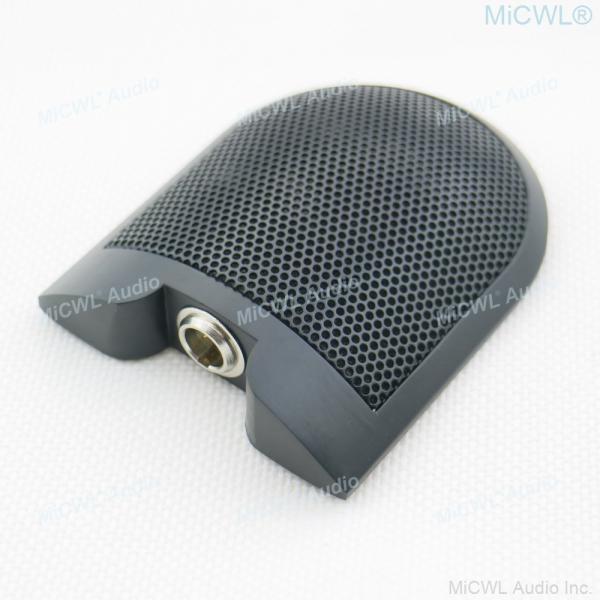

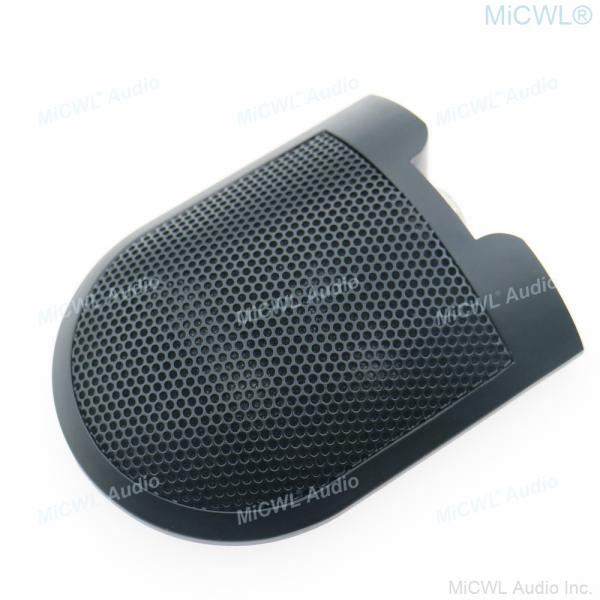

The MiCWL BM-630 Hypercardioid Boundary Conference Microphone is purpose‑built for clear, intelligible speech in meeting rooms, boardrooms, and broadcast settings. Its hyper‑cardioid polar pattern focuses on the talker while suppressing ambient noise. The push‑to‑mute switch with LED indicator lets you take private moments without noisy pops or clicks. A switchable 80Hz bass filter eliminates rumble and HVAC noise, while the shock‑absorbing rubber base isolates surface vibrations. Powered by standard 9‑52V XLR phantom power, the BM-630 includes a generous 6‑meter XLR cable for flexible placement. Whether for videoconferencing, panel discussions, or live broadcasts, this boundary mic delivers polished, professional audio right out of the box.
The hyper‑cardioid pattern captures the speaker directly in front while rejecting off‑axis sounds and room reverberation. Your voice stays clear and focused, even in large reflective rooms.
An electronic push‑to‑mute switch provides silent, pop‑free muting. The bright LED indicator glows when the microphone is active, so everyone knows when it’s live.
Toggle the 10dB/octave 80Hz low‑cut filter to instantly remove low‑frequency rumble from HVAC systems, table bumps, and foot traffic – no external processing needed.
The rugged metal housing sits on a heavy rubber pad that mechanically isolates the microphone from table vibrations, ensuring only the speaker’s voice is captured.

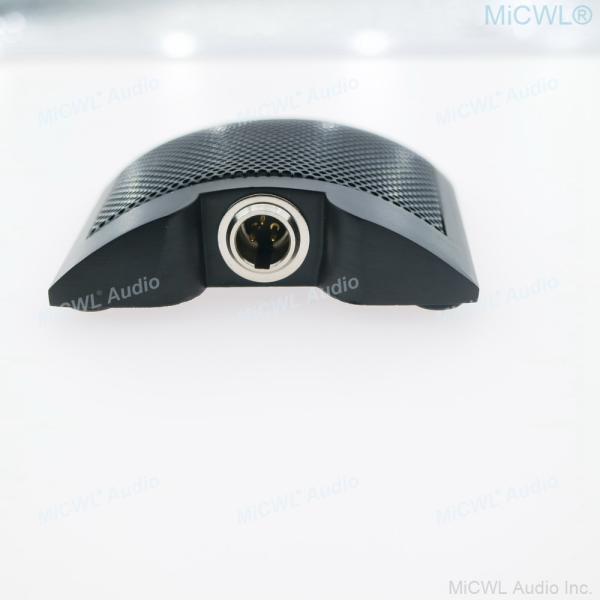

Includes a 6m (19.7ft) balanced XLR cable for easy routing to mixers or interfaces. Operates on 9‑52V DC phantom power – just plug in and speak.
| Parameter | Specification |
|---|---|
| Model | BM-630 |
| Transducer | Back Electret Condenser |
| Polar Pattern | Hyper‑Cardioid |
| Frequency Response | 40Hz – 16kHz |
| Sensitivity | -36dB ±3dB (0dB=1V/Pa at 1kHz) |
| Output Impedance | 100Ω ±30% (at 1kHz) |
| Self‑Noise | ≤26dB A (IEC 581-5) |
| Max SPL | 130dB (THD ≤1.0 at 1kHz) |
| Bass Filter | 10dB/octave at 80Hz (switchable) |
| Power | 9‑52V DC Phantom Power |
| Cable Length | 6m (19.7ft) XLR Cable Included |
| Warranty | 1 Year – MiCWL Audio Inc. |
Compatible with: Any mixing console, audio interface, or XLR microphone input providing 9‑52V phantom power. Works seamlessly with major brands such as Yamaha, Behringer, Shure, Rode, Zoom, Focusrite, and more.
Certifications: CE, FCC (compliant with relevant emission and safety standards). Built in ISO‑certified factory.
Q: Does this mic require batteries?
A: No. It is powered exclusively by 9‑52V XLR phantom power from your mixer or interface.
Q: Can I use it with a computer directly?
A: You need an audio interface or mixer that provides phantom power via XLR. A simple XLR‑to‑USB adapter will not work unless it supplies phantom power.
Q: How does the mute switch work?
A: It’s an electronic push‑to‑mute switch. Press to mute the audio silently; the LED turns off. Press again to unmute.
Q: Is the bass filter always on?
A: No. There is a physical switch on the bottom of the microphone to turn the 80Hz low‑cut filter on or off as needed.
