4× Beta58 Dynamic Supercardioid Capsules – Legendary Vocal Performance – Each handheld features the industry-standard Beta58 supercardioid dynamic cartridge, purpose-built for lead vocalists. Tight pickup pattern emphasizes vocal presence while suppressing off-axis noise and feedback. Delivers rich, natural vocal reproduction from 50 Hz–16 kHz with proven reliability on world stages.
Massive 500m Range & 400-Channel Agility – Unshakeable signal stability with an impressive 300–500m line-of-sight range and 80–200m in complex indoor venues. 400 user-adjustable UHF channels (100 per receiver) across the 610–670 MHz band ensure interference-free operation for up to 20 simultaneous systems (80 transmitters), making this the ultimate solution for large-scale musicals, multi-act festivals, and multi-room conference centers.
Professional 4-Channel True Diversity Receiver – Sleek 1U rack-mountable console features a large LED display, 4 independent SQ potentiometers, 4 balanced XLR outputs, and 1 mixed unbalanced output for seamless integration with any PA system. Advanced PLL digital synthesis ensures ±0.001% frequency stability, while True Diversity reception with 4 rubber antennas eliminates dropouts in RF-congested venues.
12-Hour Battery Life & Blue LED Status Ring – Each Beta58 handheld transmitter delivers up to 12 hours of continuous operation on 3× AA batteries (80 mA consumption). The patented housing includes a signature blue light ring that illuminates during operation for at-a-glance status monitoring on dark stages—perfect for long conferences, extended worship services, and all-day festival performances.

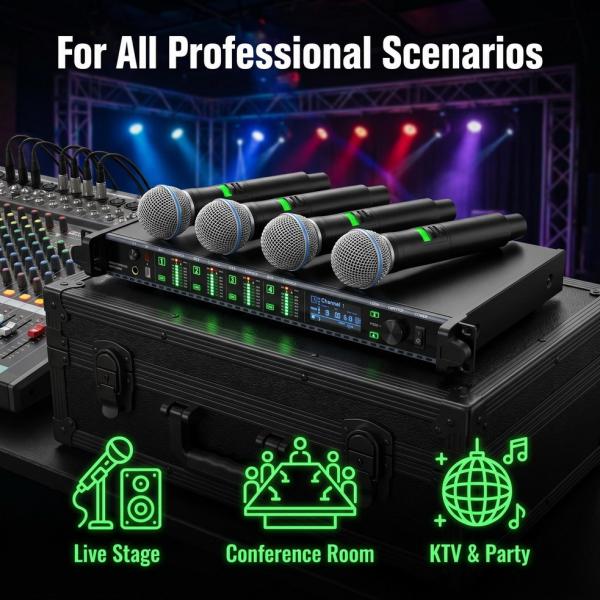

Versatile Multi-Scenario Performance – Flexible transmitter pairing across all 400 channels within two receiver banks. The supercardioid polar pattern provides maximum feedback rejection on loud stages with floor monitors, while still delivering clear vocal capture in conference rooms and houses of worship. Ideal for stage performances, band gigs, church services, school auditoriums, government boardrooms, and corporate events.
4× Beta58 Dynamic Supercardioid Handheld Mics | 400 Channels | 300–500m Range | True Diversity | PLL Digital Synthesis

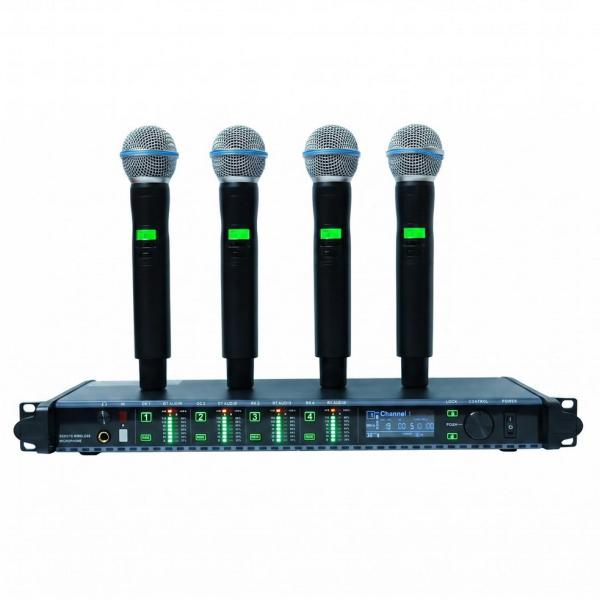

The AD4Q 4-Channel UHF Wireless Microphone System with Beta58 is a flagship professional wireless solution engineered for large-scale events and demanding live audio environments. Designed specifically for stage performances, band gigs, houses of worship, school auditoriums, and corporate conference rooms, this system includes a sleek 1U rack-mountable receiver and 4 premium Beta58 dynamic supercardioid handheld microphones. Featuring 400 user-adjustable UHF channels (100 per receiver), PLL digital phase-locked loop technology, and an impressive 300–500 meter line-of-sight range, the AD4Q delivers pristine, dropout-free audio that competitors simply cannot match at this price point. Each mic runs up to 12 hours on AA batteries, with a signature blue LED status ring for real-time monitoring—making this the ultimate all-in-one wireless solution for any professional audio setup.

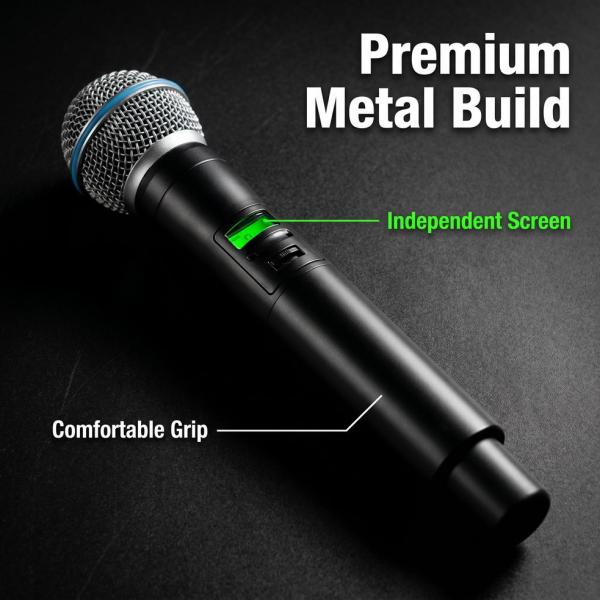

Each handheld features the industry-standard Beta58 supercardioid dynamic cartridge, purpose-built for lead vocalists. The tight supercardioid pattern emphasizes vocal presence while effectively suppressing off-axis noise and feedback—critical for loud stages with floor monitors. Delivers rich, natural vocal reproduction from 50 Hz–16 kHz with proven reliability on world stages. Each handheld operates up to 12 hours on 3× AA batteries (80 mA consumption), with a signature blue light ring for at-a-glance status monitoring on dark stages.
Each of the 4 independent receivers offers 100 selectable channels (250 kHz spacing, 24.75 MHz per channel), totaling 400 user-adjustable UHF frequencies across the 610–670 MHz band. Up to 20 systems (80 transmitters) can operate simultaneously on the same stage without crosstalk, making this ideal for large-scale musicals, multi-act festivals, and multi-room conference centers.
Advanced phase-locked loop (PLL) digital lock-phase technology paired with chip-based circuitry ensures exceptional frequency stability of ±0.001%, eliminating drift and dropouts. True Diversity reception with 4 rubber receiving antennas delivers 300–500 meters line-of-sight range (80–200m in complex environments), with >60dB signal-to-noise ratio, <0.5% THD at 1kHz, and ≥100dB dynamic range—maintaining clean audio even in RF-congested concert venues and urban environments.
The Beta58's supercardioid polar pattern provides a tightly focused pickup area directly in front of the microphone, with excellent rejection of sound from the sides and rear. This means less stage monitor bleed, lower risk of feedback, and cleaner mixes—essential for bands with wedge monitors, loud backline amplifiers, and high-gain PA systems. The dynamic transducer handles extreme SPL without distortion, making it ideal for powerful vocalists.

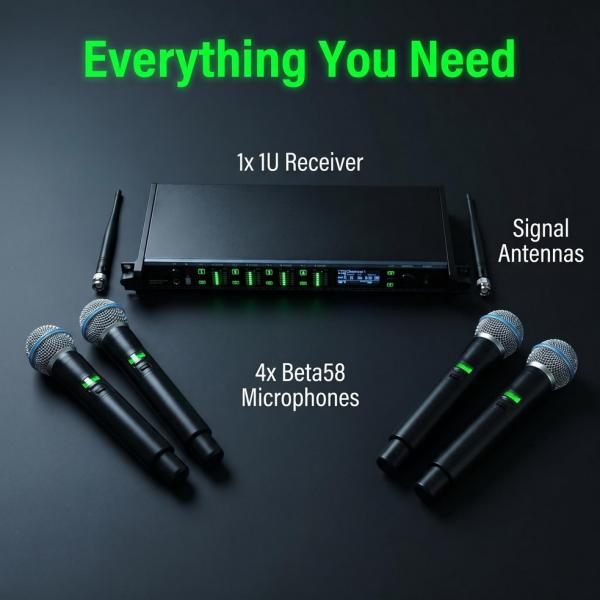

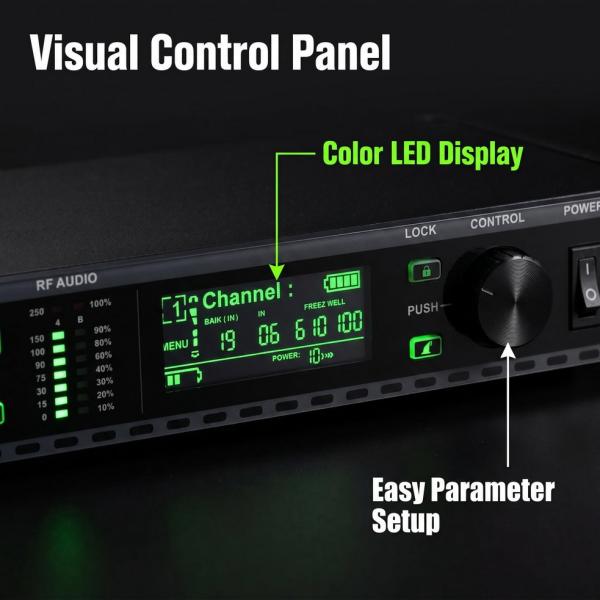

The AD4Q ships as a turnkey solution with everything needed for immediate professional use: 1 × 4-channel digital receiver, 4 × Beta58 dynamic handheld microphones, 1 × 1/4-inch audio cable, 1 × universal AC-DC adapter (DC 12V–17V), 4 × antennas, and 1 × user manual. The receiver features a large LED display for real-time frequency monitoring, 4 independent SQ potentiometers, 4 balanced XLR outputs + 1 mixed unbalanced output, and a sleek 1U rack-mountable form factor that integrates seamlessly into any existing audio rack setup.
| Parameter | Specification |
|---|---|
| System Configuration | 4-channel digital receiver + 4 × Beta58 dynamic handheld mics |
| Frequency Range | UHF 610 – 670 MHz |
| Selectable Channels | 400 total (100 per receiver), 250 kHz spacing |
| Simultaneous Systems | Up to 20 systems (80 transmitters) in same venue |
| Operating Range | 300–500 meters (open area) / 80–200m (complex environment) |
| Frequency Stability | ±0.001% (PLL digital synthesis) |
| Modulation Mode | FM |
| S/N Ratio | > 60 dB |
| T.H.D. | < 0.5% @ 1 kHz |
| Dynamic Range | ≥ 100 dB |
| Receiver Sensitivity | 1.2μV @ S/N = 12dB |
| Receiver Audio Outputs | 4 × Balanced XLR (0–400mV) + 1 × Mixed Unbalanced (0–300mV) |
| Receiver Power Supply | DC 12V – 17V |
| Mic Capsule Type | Dynamic (Moving Coil), Supercardioid |
| Mic Frequency Response | 50 Hz – 16 kHz |
| Mic Battery Life | Up to 12 hours (3 × AA 1.5V batteries) |
| Mic Power Consumption | 80 mA |
| Special Feature | Blue LED status ring on each handheld mic |
| Warranty | 1 Year (Manufacturer: MiCWL Audio Inc.) |
🛡️ Authorized Dealer Warranty: This product is brand new in original packaging, sold by MiCWL Audio Inc. as an authorized dealer. Covered by a 1-Year Manufacturer Warranty. Buy with confidence.
If you have any questions about the AD4Q Beta58 system, need a custom microphone capsule configuration, or would like to inquire about bulk / government orders — our team is ready to assist you.
